Havasu Falls 1a md.jpg
With world population growing, demand for food (and hence water for farming 11px-Wikipedia_logo.jpg) expected to grow by 70% [1], rivers becoming polluted and one in eight people already without clean drinking water [2], some have warned that we are heading for a 'peak water' crisis with people lacking the necessary water to survive, and wars breaking out over the access to water supplies [3]. Already, about half of all infectious disease is caused by contaminated drinking water.

A grim picture, indeed. But fortunately, an entirely avoidable one. Water is one of the most abundant resources available to us on this blue planet. The only problem we may face is synthetic scarcity; this article aims to show that there is no real shortage of water, nor of techniques to purify and manage it. If we simply apply the water-management techniques — many of which are extremely simple, low-tech, low-cost things — we have all the water we could ever need.

Abundance of water

Pacific ocean
Over 70% of the surface of the Earth is covered by water, with the average depth of the oceans being 3.8 kilometres (12,430 ft) – we live on what is primarily a water world. Wasting the fresh water that falls on the surface of the land should of course be avoided wherever possible, but having enough fresh water in any place ultimately comes down to energy, rather than water itself — energy to transport water and energy to purify it. If energy is abundant, then pure water is abundant.

A decentralized water system

As noted above, the challenge of supplying water is twofold:

  1. Having the energy and infrastructure to transport it
  2. Having the energy and infrastructure to filter it

If water is produced on-site, the energy needed to transport it is reduced to nearly zero.

The vast potential of rainwater harvesting

Leaky pipes are not the worst problem with transporting water from off-site!
The solution to the 'water crisis' is very obvious — we should use the distilled water that falls on our homes instead of diverting it into gutters. This way, water need not be pumped across long distances, which saves the energy needed to transport it and the considerable losses to leaks, which are typically 30% or more. There is rainwater and other impure water in adequate quantities nearly everywhere where there are people. We need to grab this water instead of laying pipes or spending hours a day carrying water.

In just about any climate, all the water you need falls on your roof. Suppose you live in a climate that has only 35cm of rainfall per year (which would be classed as a semi-arid climate) and your house is small, with a footprint of 100m2. These are adverse conditions for rainwater harvesting, but such a house would still catch 35,000 liters of water a year, 95 liters a day, which is plenty to cover all domestic use.

A UN report found that rainwater harvesting could supply about ten times what is available from groundwater. Even in cities, where population density is high, the report concluded that rainwater harvesting could meet demand 2-4 times over.

Decentralizing water-production in this way would eliminate the need for a complicated, leaky water-grid and would make people more independent and resilient in the case of disasters.

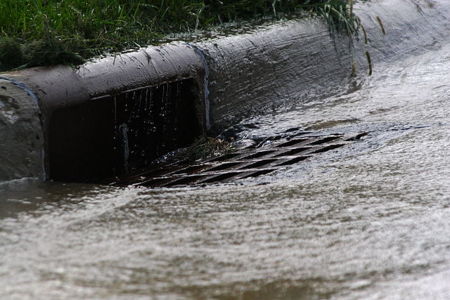

Although we warn of a shortage of fresh water, we continue to build gutters and drains designed to do one thing: get rid of fresh water as quickly as possible. If we simply filter this water and put it to use, the problem is solved.

Cheap, small-scale water filtration

UV light is a clean and effective way to kill water-borne pathogens and requires no chemicals, only about 15W of electricity. As LEDs get cheaper and more energy-efficient, the use of UV-emitting LEDs to sterilize water becomes more and more attractive.

As for the filtration problem, that is being made much easier by some new technologies:

  • Nanofilters are one effective way of filtering out both suspended particles (which cause unpleasant tastes, smells and discoloration) and pathogens. The Tata Swach 11px-Wikipedia_logo.jpg is a device that uses nanofilters to give very pure water. It retails for only $21. The LifeSaver bottle 11px-Wikipedia_logo.jpg pumps water through a 25 nanometer filter. This is fine enough to remove viruses and bacteria as well as any particles. Its inventor, Michael Pritchard, has calculated that versions of this technology could provide all the world's water needs for just $20 billion.
  • The Slingshot 11px-Wikipedia_logo.jpg, a water filter invented by Dean Kamen 11px-Wikipedia_logo.jpg, can both desalinate and purify water. It is powered by a Stirling engine, which converts ambient heat to work without the need for electricity. Each unit can purify about 1000 liters of muddy water, rainwater, seawater or even urine a day, at a cost of about $0.02 per liter. This would serve the needs of 10-20 people. It is estimated that this technology could provide Africa's clean water needs for $3 billion.

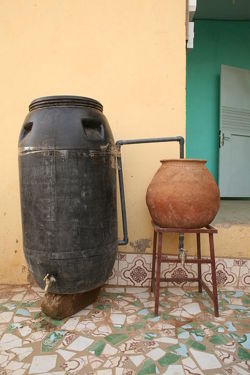

    Biosand filters are remarkably simple for such an effective device; they consist of nothing more than a barrel filled with sand. Gravity and biology do the work without the need for energy use.
  • A more low-tech, but equally effective, option is a slow sand filter 11px-Wikipedia_logo.jpg or biosand filter 11px-Wikipedia_logo.jpg. This is essentially a barrel of sand. As water permeates slowly through the sand, particulate impurities are filtered by the sand itself and pathogenic viruses and bacteria that grow in the sand become food for the benign bacterial colonies that grow in the sand. A biosand filter can filter rainwater to potable quality with no energy, no chemicals and no moving parts. They have been shown to remove 98.5% of bacteria from water[4]. They have been shown to operate for at least eight years without maintenance[5]


The vast majority of mankind's water needs can be met by rainwater catchment. In those few climates where there is not enough rain to meet water demand (such as North Africa and the Middle East) we can create the most vital of human requirements - fresh water - from the most abundant of resources - seawater.

97.5% of Spaceship Earth's water is in its oceans. Though warnings of water shortages invariably dismiss desalination a priori as too expensive or energy-intensive [6][7][8], this is only a valid argument if the energy supply is limited. As long as we have large amounts of renewable energy at our disposal (which we do - see the energy section), we can always create fresh water as required from seawater. Abundant energy means abundant fresh water. Happily, the areas most in need of desalination plants tend to be extremely sunny regions: North Africa, the Middle East, Australia, Mexico etc. These regions are extremely well-suited to solar power and desalination plants set up here could readily power themselves with a few fields of photovoltaic panels.

Moreover, though desalination does require a lot of energy, this requirement is steadily falling as technology improves. Currently large-scale desalination generally uses reverse osmosis 11px-Wikipedia_logo.jpg, where seawater is forced under pressure through a membrane. The benchmark amount of energy required for this process is 3.5 kilowatt hours per cubic meter of water p.10. There are several promising technologies which are expected to bring this requirement to 1kWh/m3 or below within the next decade —

  • Forward osmosis — Forward osmosis pre-treats seawater using a solution to draw some of the salt out of it. This partially desalted water requires less energy to desalinate using a membrane filter. The inventor, Robert McGinnis, has calculated the energy requirements at 0.24 kWh/m3 (p. 18)
  • Nanofiltration is an advanced form of reverse osmosis using filters made of carbon nanotubes, which are big enough to let water molecules pass though, but small enough to filter out salt particles, impurities and pathogens. Nanofiltration uses only a quarter the energy of conventional methods of desalination[9]. IBM are conducting research into nanofiltration-based desalination [10].
  • Solar desalination 11px-Wikipedia_logo.jpg is a simple and ancient method of desalination that uses no electricity at all, just the heat of the sun to evaporate seawater, which separates the salt from the water. It is only feasible in very hot countries, but these tend to be the ones most in need of water.
  • The above technologies could decrease the amount of energy needed for desalination from 3.5kWh/m3 to less than 1kWh/m3. This would be enough to revolutionize the world water system, but there is an even more radical solution which proposes to use no energy at all to desalinate water, but to actually generate electricity from a desalination process. Microbial desalination cells use electrically active microbes to suck sodium and chlorine ions out of the water, simultaneously desalinating water and generating a flow of electrons. A paper published in July 2010 reported that a microbial desalination cell ran successfully for 4 months, removing 99% of salt from water and constantly generating electricity. A follow-up study reported success in removing 90% of total dissolved solids from seawater while generating 1.8kWh of energy per m3 treated[11].

Atmospheric water generators

Atmospheric water generators 11px-Wikipedia_logo.jpg condense water from the air. This water is clean and ready to drink. It is interesting to note that even very dry air contains about 5ml water per cubic meter of air, so even in a desert, there is enough water from the air to sustain a person or to grow food if the right technology is there to condense it.

An interesting article by Patrick G. Salsbury analyses the enormous potential of atmospheric water generators to help meet humanity's water needs. He calculates that a device smaller than a microwave oven (using a crude prototype design and a very conservative estimate) provides 110l of clean water a day. Aqua Sciences have a condensor the size of a truck trailer that makes up to 4500l a day - enough for 90 people. Large-scale atmospheric water condensers could be used to generate sufficient water from the air to enable farming in very dry regions.

These work by actively cooling a surface area to below the dew point.

Condensing water using metal-organic frameworks

Metal-organic frameworks (MOFs) are compounds made by linking molecular building blocks together by strong bonds to make crystalline extended structures. Since the first MOF was reported back in the 1990s, thousands have been synthesized, each with different properties. Some can absorb water from air at relatively low humidity (such as in the desert at night), and then release it readily when heat is applied (as in the desert in the daytime).

  • MOF Water Harvesters (PDF)
  • Water Harvesting From Desert Air - Professor Omar Yaghi - CPS 2021: (video, 84 min). @49m the water was tested and meets potability standards, @51m13s he starts talking about the active version that requires energy, @55m capacity has gone from tiny amounts of per day in 2016 to 100l per kg of MOF per day

Microbial wastewater treatment

Microbial fuel cells can be fitted to sewage water treatment facilities to generate electricity. One investigation found that the organic impurities in sewage contain 9.3 times as much energy as is needed to treat the water[12]. It should be possible to integrate microbial energy-harvesting systems with water treatment facilities to create a self-sustaining facility that creates both clean water and clean electricity.

Using less domestic water

In the USA in 2006, the average water use per person per day was 575 litres. Compare this with 149 litres in the UK and 4 litres in Mozambique. 50 litres of water is sufficient for a person[13][14], without requiring sacrifices in lifestyle, just by improving system design. As shown above, even the higher figures can be met by rainwater.

Greywater 11px-Wikipedia_logo.jpg is the run-off from showers, sinks etc. It is water that has been used, but is not so dirty it cannot be used for purposes like gardening or washing clothes. Houses can be fitted with greywater recycling systems, where, for example, the output of the shower becomes the input of the dishwasher. This significantly reduces the amount of water needed to run a home.

Using composting toilets rather than flush toilets would save 26.7%[15] of water use in the home. Composting toilets are also a source of fertilizer for growing food - and electrodes could even harvest electricity from the bacteria they contain (see Energy).

With the concern about conserving water in recent years, designers have developed toilets, sinks, dishwashers and washing machines that use a fraction of the water used by conventional designs.

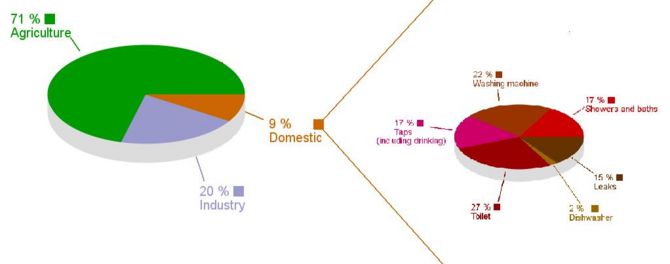

However, reducing the domestic use of water is only a small part of the puzzle. Agriculture is the main cause of water use —

Any attempt to reduce water use should focus on a switch to sustainable agricultre. Even a small improvement in the water-efficency of agriculture would be far more important than anything we can do in conserving domestic water.
